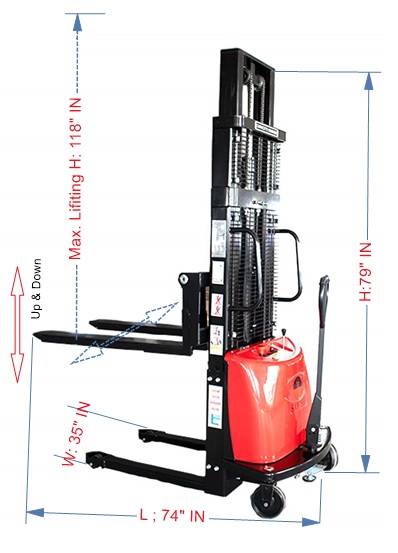

Capacity: 1000kgs & Max.Height:300cm

1. BY CE CERTIFICATED
2. CAPACITY: 2200 LBS
3. LIFTING HEIGHT: 118",FORK LOWERED HEIGHT:3.5"

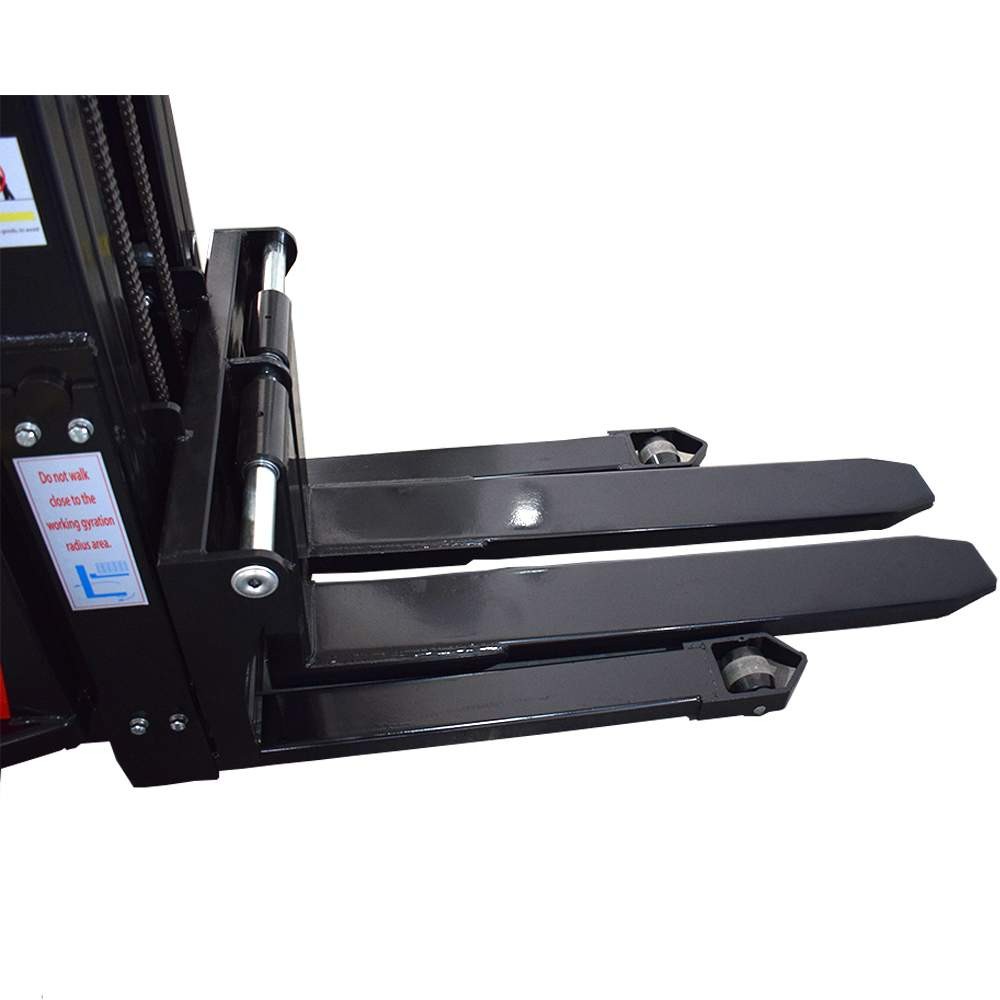

4. ADJUSTABLE FORK WIDTH: 6.3"-34.6"
5. LIFTING MOTOR POWER: 2.14 HP
6. BATTERY VOLTAGE/RATED CAPACITY: 12V/150AH

EMAIL



Product Description

What are the functions of Electric Lift Platform?
Raise or lower heavy material to desired position. Meanwhile,Avoid physical harm. Widely used in automotive, container, mold manufacturing, production lines, chemical canning, repair industry etc.
1) Reliability
•   CE Certification
•   Heavy-duty design
2)  Efficiency
•   Low-Voltage(24V) control box with up-down buttons
•   Pieces moving parts with self-lubricating guide ring
3)  Safety and Easy Maintenance
•   Heavyduty cylinders with drainage system and check valve to stop the Lift Table lowering in case of hose burst.
•   Removable rings, mesa makes the pipes easier to install and maintenance
•   Wedgeblock is equipped with a safety guard, convenient maintenance

Warning
•   Unauthorized maintenance or training is strictly prohibited

Warning
•  Unauthorized maintenance or training is strictly prohibited.


Product Information
Technical Data



Rated load capacity

LBS

2200

Load centre

In

20

Lift height

In

118

Min. fork height

In

3.5

Overall height

In

79

Overall length

In

74.0

Overall width

In

34.6

Fork length

In

45.3

Individual fork width

In

6.3

Front wheel

In

3.1X3.1

Rear wheel

In

7X2

Lifting motor power

Hp

2.1

Battery Voltage/Rated Capacity

V/Ah

12/150

Lifting speed(laden/unladen)

mm/s

80/100




 Additional Information



Dimensions






Note:All products are our standard products, design and specification are subject to change without prior notice.
