Capacity: 1000kgs & Max.Height:170cm

1. 2200 lbs loading capacity
2. Lifting height (min/max): 20" - 67"
3. Table size: 47" length 24" width

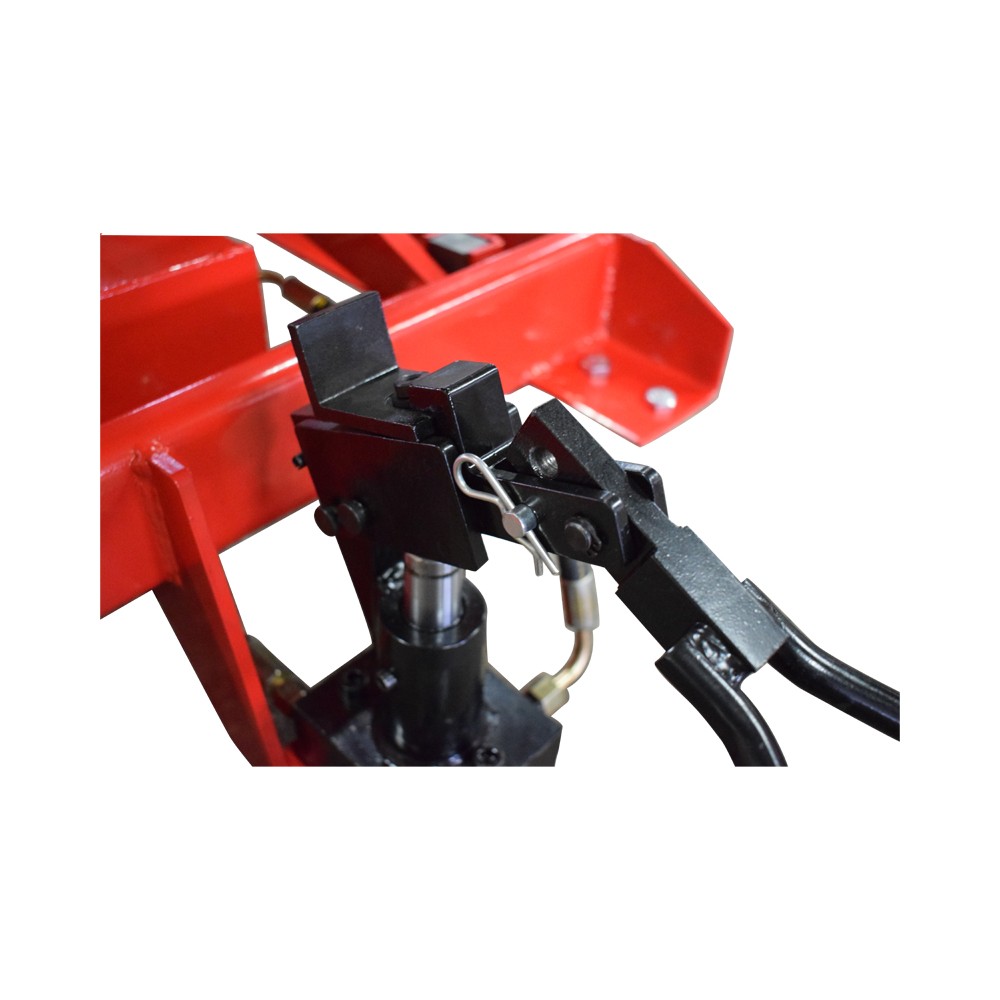

4. Foot pump, manual push,easy-release lever to lower
5. PU wheels, two rigid and two swivel with brake
6. Overload valve protects pump and operator

EMAIL



Product Description

Ideal for Many Applications
The simplicity and compact design of these carts make them suitable for lifting and transporting loads, order-picking, die handling and assembly operations. An ergonomic solution to lifting, positioning and transporting.

Reliable & Stable

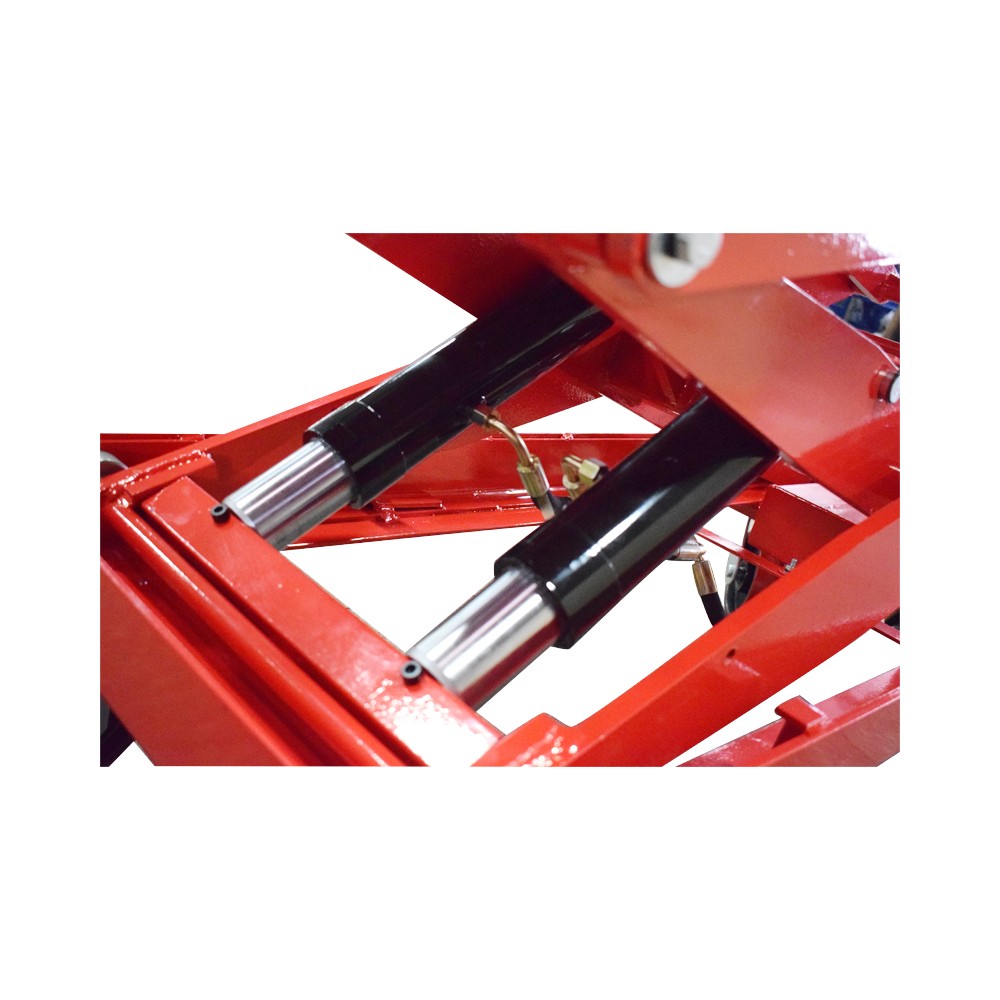

Overload valve design prevents damage from misuse of the truck and reduces the overall maintenance cost. Each cylinder is equipped with an internal hydraulic velocity fuse. The heavy duty steel construction is engineered to hold up in harsh environments. Two rigid front casters and two rear swivel (with brake) increase maneuverability in tight areas.

Safety & Comfort
Safety stops minimize the risk of an empty deck from lowering while performing maintenance. Diminishes the amount of worker bending and lifting, which reduces risk of injury. Raise and lower the deck with mini pain and strain.


Warning: Do not move while under load. Never use to lift people



Product Information

Technical Details

Model
SS_TF100SD
Capacity
2200 lbs1000 kgs
Min. Height h1320"50 cm
Max.Heighth1267"170 cm
Height of tiller in drive position Max.h14

Table Dimensionsl/b5/s47.2" x 24" x 3"120x61x7.7 cm
Overall Lengthl163"160cm
Wheel (PU)
Φ6"15 cm
Truck weight
510 lbs232 kgs
Gross Weight
515 lbs234 kgs
Carton Size
55" x 24.5" x 20"140x62x51 cm
